Ball Screw DFU

Space saving internal circulate design
Low friction force with 1/3 over acme screw
Ensure for high accuracies
Micro feed with tolerance within in 0.1μm
Zero backlash, high stiffness.
Warranty: 1.5 year
Model#: DFU1605 1610 2005 2505 2510 3205 3210 4005 4010 5010 5020 6310 ETC
Diameter: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100mm
Lead: 1-40mm
Accuracy Grade: C7 (0.05/E300mm), C5 (0.023/E300mm)
Shaft Length (mm): 0-6000mm length according to customer's needs

GET A QUOTE


Product Description

OFU and DFU type ball screw is belong to Internal Return Series, and it widely used in industrial area.
Internal Circulation, Flange, Double Nut Type
OFU & DFU series delivers high accuracy, no clearance and high rigidity. Internal circulation design saves more space, double nut design provides high load-carrying capacity, high stability and long service life.

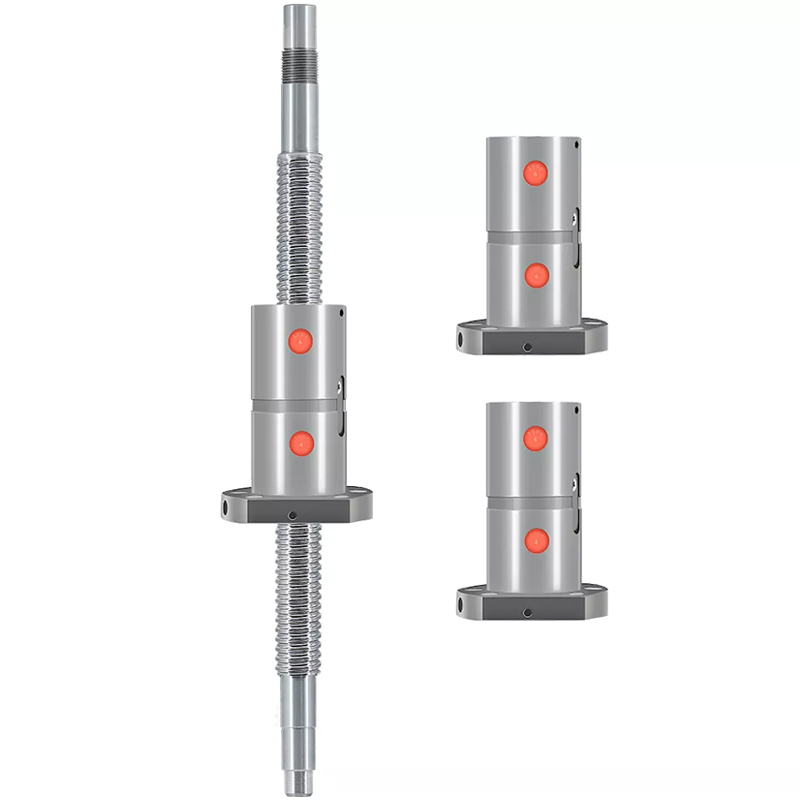

Pinsi ball screw DFU


Feature:


1. Space saving nternal circulate design
2. Low friction force with 1/3 over acme screw
3. Ensure for high accuracies
4. Micro feed with tolerance within in 0.1μm
5. Zero backlash, high stiffness.
Pinsi Ball Screws Features DFU


Application：

For delicate application in industrial application, machine tool and automation application.
Pinsi ball screw jack DFU application
