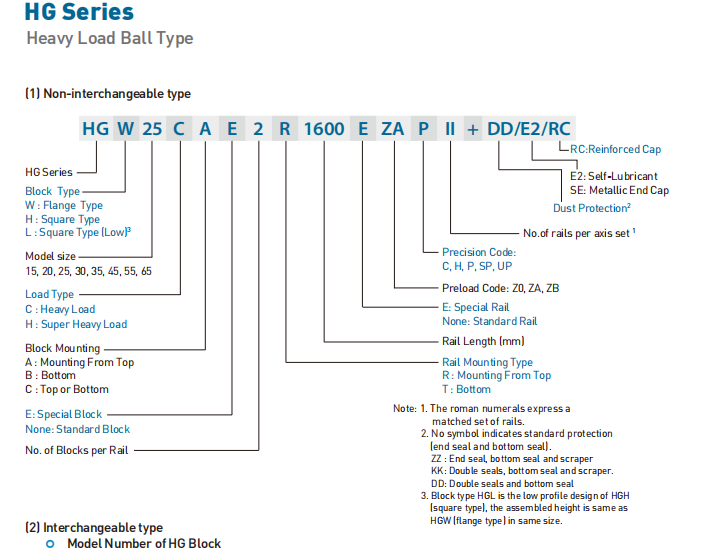

Linear Guide Slider HGH
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error. Thus, HIWIN HG series linear guideways can achieve a long life with high speed, high accuracy and smooth linear motion.



(1) Self-aligning capability
By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors
due to surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements
and the shift of contact points. Self-aligning capability, high accuracy and smooth operation can be obtained with
an easy installation.
(2) Interchangeability
Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable
range, which means that any blocks and any rails in a specific series can be used together while maintaining
dimensional tolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed
from the rail.
(3) High rigidity in all four directions
Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radial
and lateral directions. Furthermore, the circular-arc groove provides a wide-contact width between the balls and
the groove raceway allowing large permissible loads and high rigidity.





  Applicable Industries: Automatic equipment, Linear Montion, CNC Machineries
